規格
|
General |
|
|
CPU |
Intel® AtomTM N2600 CPU, Dual-core, 1.6 GHz,TDP 3.5W |
|
Chipset |
Intel® NM10 Chipset, TDP1.5W |
|
Memory |
Up to 4 GB DDR3 1066/800 MHz, 1*SO-DIMM |
|
Storage |
1*SATA 2.0, 1*mSATA |
|
Expansion Interface |
2*Mini-PCIe (1*mSATA Supported, 1*Wifi/3G/4G Supported) |
|
BIOS |
AMI UEFI BIOS |
|
System |
Windows XP/7, Linux |
|

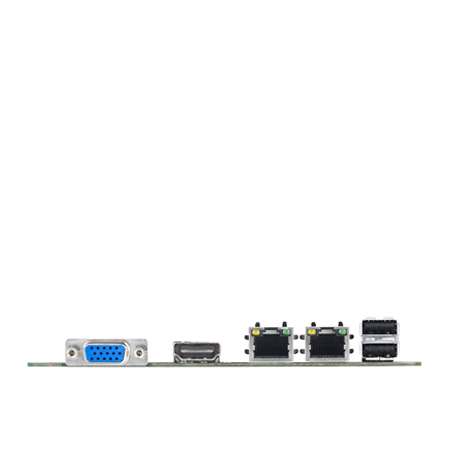

I/O Interface |
|
|
Serial Port |
6*RS232 (COM6 RS485 optional) |
|
USB |
7*USB 2.0 (2*on rear I/O, 5*header) |
| Ethernet |
2*Realtek® PCI-E LAN for 1000Mbps |
|
Audio |
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-outPorts |
|
PS/2 |
1*PS/2 (Keyboard and Mouse Supported) |
|
Parallel Port |
1*LPT |
|
GPIO |
8 programmable GPIO |
|
Feature Interface |
Null |
|
Display |
|
|
Display Interface |
1*VGA: max resolution up to 1920*1200 1*LVDS: Dual Channel24bit, max resolution up to 1600*1200 |
|
Multiple Display |
Dual |
|
Mechanical & Environment |
|
|
Dimension |
3.5’’, 146*105mm |
|
Power Input |
DC 12V |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
